High Quality Derusting Detergent Dryer, Potassium Metaphosphate Dryer, Poly Aluminium Chloride Drier Suppliers in China

Home > Products > Industrial Spray > Industrial Spray Drying Machine

Industrial Spray Drying Machine

  • Industrial Spray Drying Machine
  • Industrial Spray Drying Machine

Industrial Spray Drying Machine

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 40 Days
    Packaging: Wood Case
    Productivity: 10-20 Set per Year
    Brand: Hywell
    Transportation: Ocean
    Place of Origin: China (Mainland)
    Supply Ability: 5 Set/Sets per Month
    Certificate: ISO
    HS Code: 8419399090
    Port: Shanghai

Basic Info

Model No.: LPG

Product Description

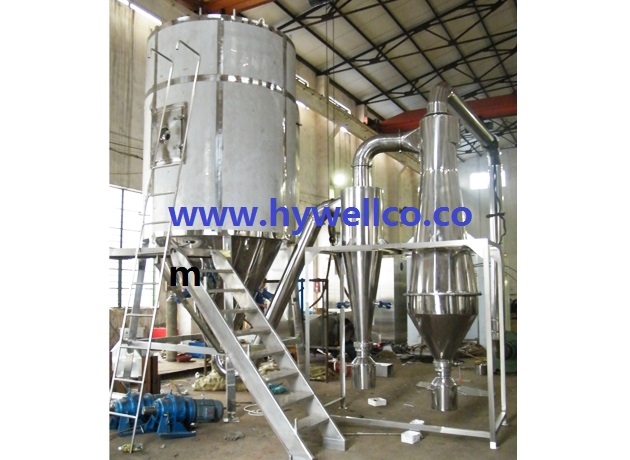

Industrial Spray Drying Machine


Derusting Detergent Dryer Introduction

Potassium Metaphosphate Dryer is a wide applied process in liquid process shaping and drying industry. This kind of Poly Aluminium Chloride Dryer has quick drying speed. Particularly the Derusting Detergent Spray Dryer is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard.

The surface area of material liquid through atomizing is increased greatly. In hot air stream, 95% to 98% of moisture can be evaporated at the moment. Especially suit for drying thermal sensitive material. The product made by the machine has good uniformity, fluidity, solubility, high pure, and high quality.


The productive process is simple and the operation, control is very convenient. For liquid containing 40 - 60% of damp(for special material, may be 90%), it can be dried to powder product through drying one time. After dried, it is not necessary to crush, sieve. So it reduces productive procedure and raises the purity of product. For the size, bulk density and moisture of product can be adjusted within certain scope through exchanging operation condition.


Attention to order
1. When order the LPG series high speed centrifugal spray dryer, Client need to supply the materials name.

2.When order the LPG series high speed centrifugal spray dryer, Client need to supply the materials characteristic that include materials HP, Maximum withstand temperature and so on.

3.When order the LPG series high speed centrifugal spray dryer, Client need to supply the materials primary moisture and final moisture (%).

4.When order the LPG series high speed centrifugal spray dryer, Client need to supply the treating capacity per hour.

5.When order the LPG series high speed centrifugal spray dryer, Client need to supply heating way, if it use steam heating, client need to supply the steam pressure and steam capacity.

6.When order the LPG series high speed centrifugal spray dryer, Client need to decide which kinds steel for machine-304 stainless steel or 316L stainless steel (Hywell also give suggestion for the stainless steel model base the materials HP).


Product Parameter

The Main technical parameters is for reference. We also produce and design product as per customers' requirment:.

Spray Drying Equipment LPG-5 LPG-25 LPG-50 LPG-100 LPG-150 LPG(200-11000)
Max evaporation(kg/h) 5 25 50 100 150 200-11000
Inlet temp(ºC) ≤350
≤350 ≤350 ≤350 ≤350 ≤350
Outlet temp(ºC) ≤90 ≤90 ≤90 ≤90 ≤90 ≤90
Driving type of centrifugal sparyer drived by compressedair machanincal drive
Rotation speed(r.p.m) 25000 22000 21500 18000 18000 8820-15000
Dia.of spray pallet 50 102 108 108 150 180-340
Dimension(m) 1.8*0.93*2.2 3*2.7*4.26 3.7*3.2*5.1 4.6*4.2*6 5.5*4.5*7 design acording to actual conditions
Powder recollection(%)
95-99

95-99

Spray Drier Machine

Changzhou Hywell Machinery Co,.Ltd

 Hywell is professional manufacturer for drying machine, mixing machine, granulating machine and grinding machine.From dryer, mixer to granulator, from unit machine to production line, we have them all. Hywell is a Chinese supplier of industrial dryer, mixer, granulator. our flagship products include the hot air dryer, microwave dryer, vacuum dryer, one dimensional mixer, two dimensional mixer, three dimensional mixer, and granulator and so on.......
